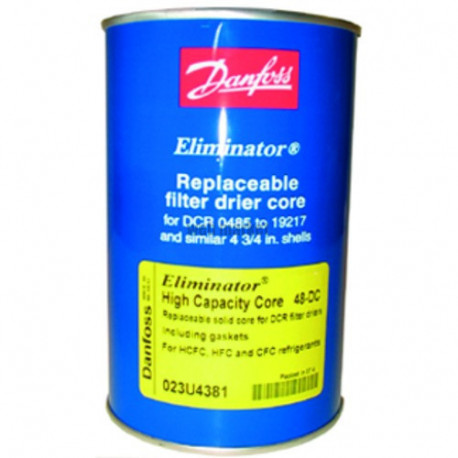

CARTOUCHE DESH48 48DM+

Visuels non contractuels

Dispo - La Pièce

All solid cores have an optimised uniform grain size ensuring effective dirt removal and low pressure drop. The robust solid cores withstand pressure surge and vibration.
Inserts for DCR housings - strainer
48 - F strainer - compatible with all refrigerants:
• Retains dirt particles larger than 15 μm
• For use direct in DCR housings
• Utilised in the suction or liquid line
Inserts for DCR housings - solid cores
48 - DM - 100% molecular sieve solid core suitable for R744 CO2 and HFC (R134a, R404A, R507, R407C and R410A) refrigerants:
• Provides high moisture adsorption at low and high condensing temperatures
• Effective protection against impurities
48 - DC - 80% molecular sieve and 20% activated alumina solid core suitable for HCFC (R22) refrigerants and compatible with HFC (R134a, R404A, R507, R407C and R410A) refrigerants:
• Adsorbs moisture and acid in the system throughout the entire temperature range
48 - DA - 30% molecular sieve and 70% activated alumina solid core suitable after compressor burnout and compatible with HCFC (R22) / HFC (R134a, R404A, R507, R407C and R410A) refrigerants:
• High acid adsorption and standard water adsorption
